TFI Polypropylene Wet Scrubbers
Polypropylene and PVC Inline® Wet Scrubbers
TFI/Inline Design VS Series Wet Scrubbers in Polypropylene or PVC are designed for laboratories and any point of use application that requires removal of acid vapors from exhausted air. The acid wet scrubbers perform exceptionally under the most demanding corrosive environmental conditions.
The VS Series Scrubber is a compact vertical Venturi unit designed to be installed indoors directly above an individual hood or equipment that is producing harmful vapors.
Inline Scrubber benefits:
- Highly effective with all water soluble acids
- No moving parts to wear and/or replace
- Low water consumption at minimum 8 gallons per hour
- Installs directly into existing ducting systems
- Two hour average installation time with minimal tools
- Allows you to isolate individual hoods or tanks that require pollution reduction
- Low initial cost
- Low operating cost
- Uses no packing material to clog or replace
- Water is the only scrubbing media required with many acid environments

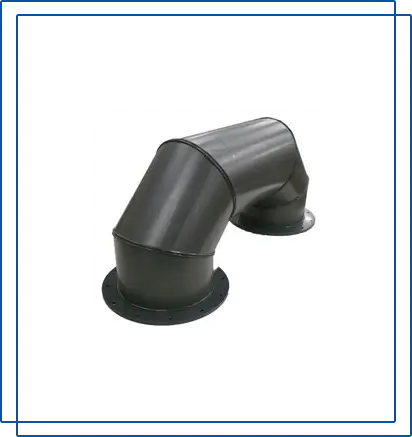

Polypropylene & PVC Ducting
TFI/Inline Design offers PVC ducting in 8”, 10” and 12” diameters, as well as various standard parts such as elbows, couplings, etc. The use of PVC ducting protects the ventilation system from corrosion due to the presence of corrosive acid fumes. Along with the standard sizes, custom sizes can be manufactured to fit the needs of the project.

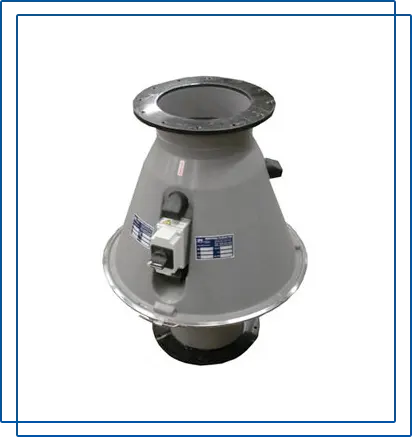

Exhaust Fans for Wet Scrubbers
TFI/Inline Design both manufactures and distributes exhaust fans that are fabricated using both PVC and polypropylene and are designed to work in corrosive environments.
